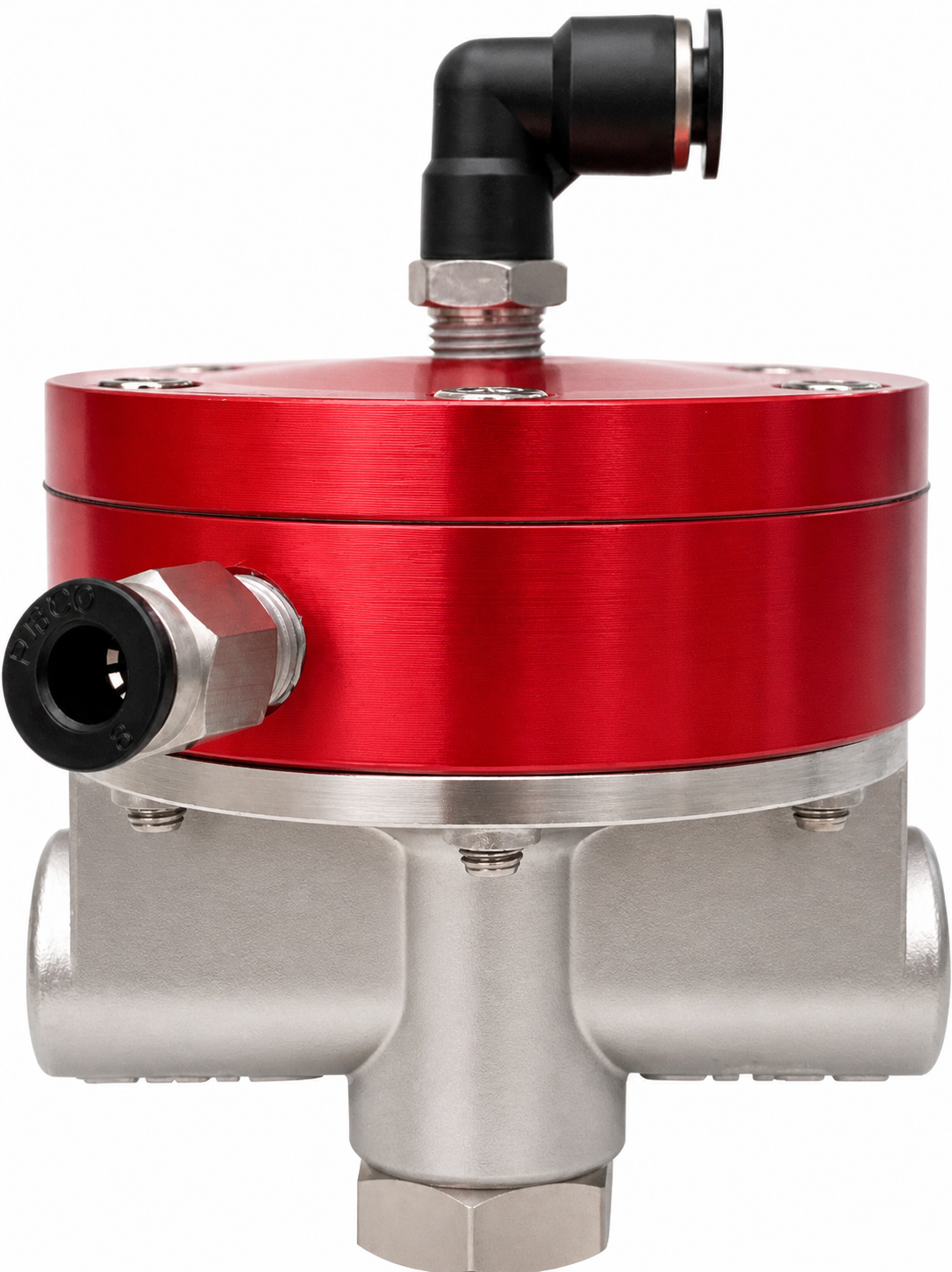

Pneumatically controlled low-pressure liquid pressure stabilizing element

The LFR-A03 is a pneumatically controlled, two-stage precision liquid pressure regulator suitable for feeding and conveying systems requiring high-stability low-pressure liquid control. Through its two-stage pneumatic pressure control structure, it can precisely adjust the liquid output pressure, keeping the feeding pressure stable and reducing pressure fluctuations.

Installation location

Installed on the liquid supply line or equipment inlet, it is used to adjust the supply pressure to the working pressure required by the equipment and maintain a stable liquid output pressure.

Product Features

The LFR-A03 employs a pneumatic two-stage pressure control structure, providing more stable liquid pressure control in the low-pressure range. The two-stage pressure regulating mechanism reduces pressure fluctuations and improves control accuracy, making it suitable for precision liquid control systems requiring stable feed pressure.

Application

• Precision liquid feeding system

• Automated equipment liquid control

• Coating recycling system

• Industrial liquid low-pressure control system

Technical specifications

Maximum inlet pressure: 12 bar; Maximum outlet pressure: 7 bar; Maximum controlled flow rate: 2.0 L/min

Applicable fluid: Liquid

Inlet/outlet size: 1/4"PT
